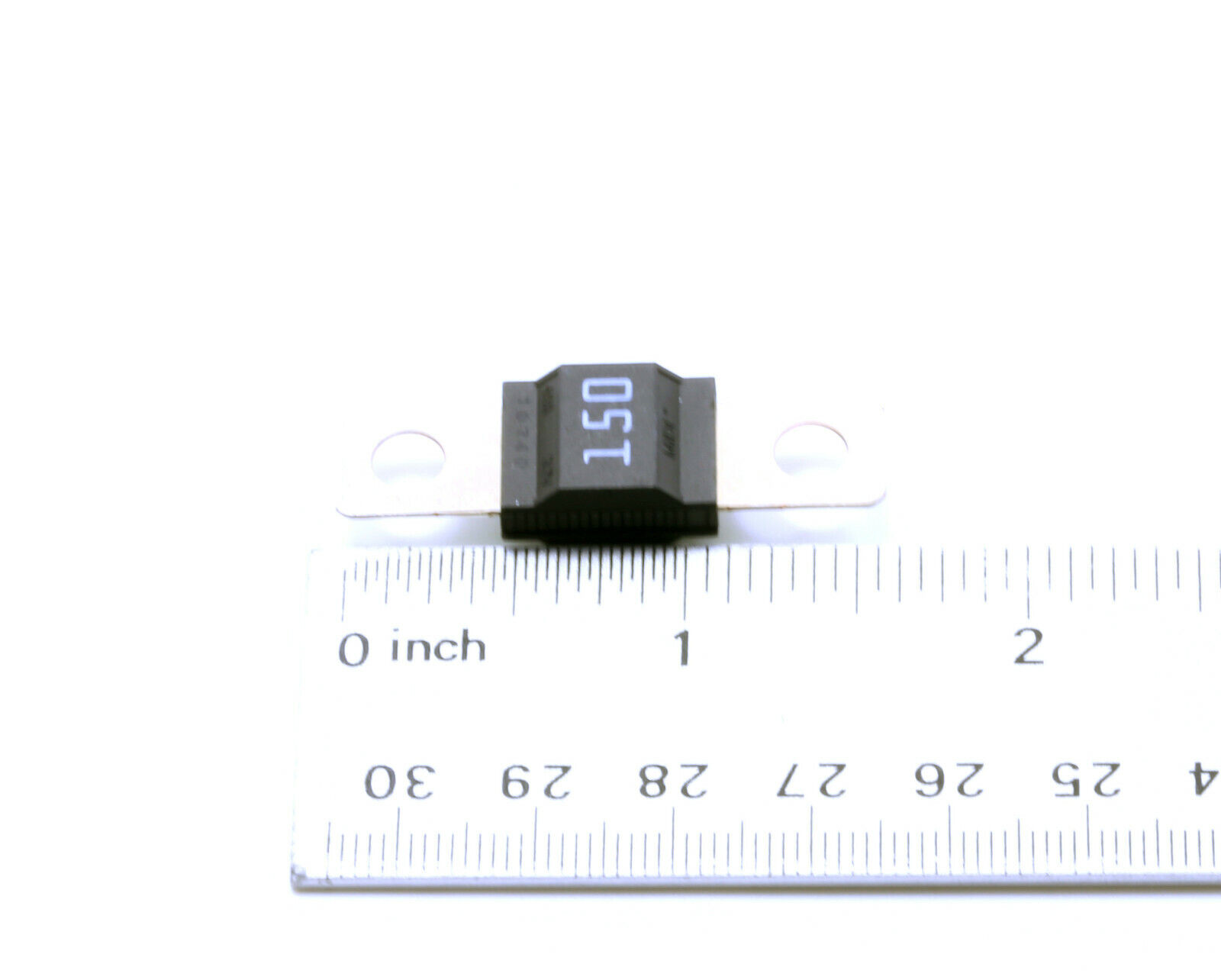

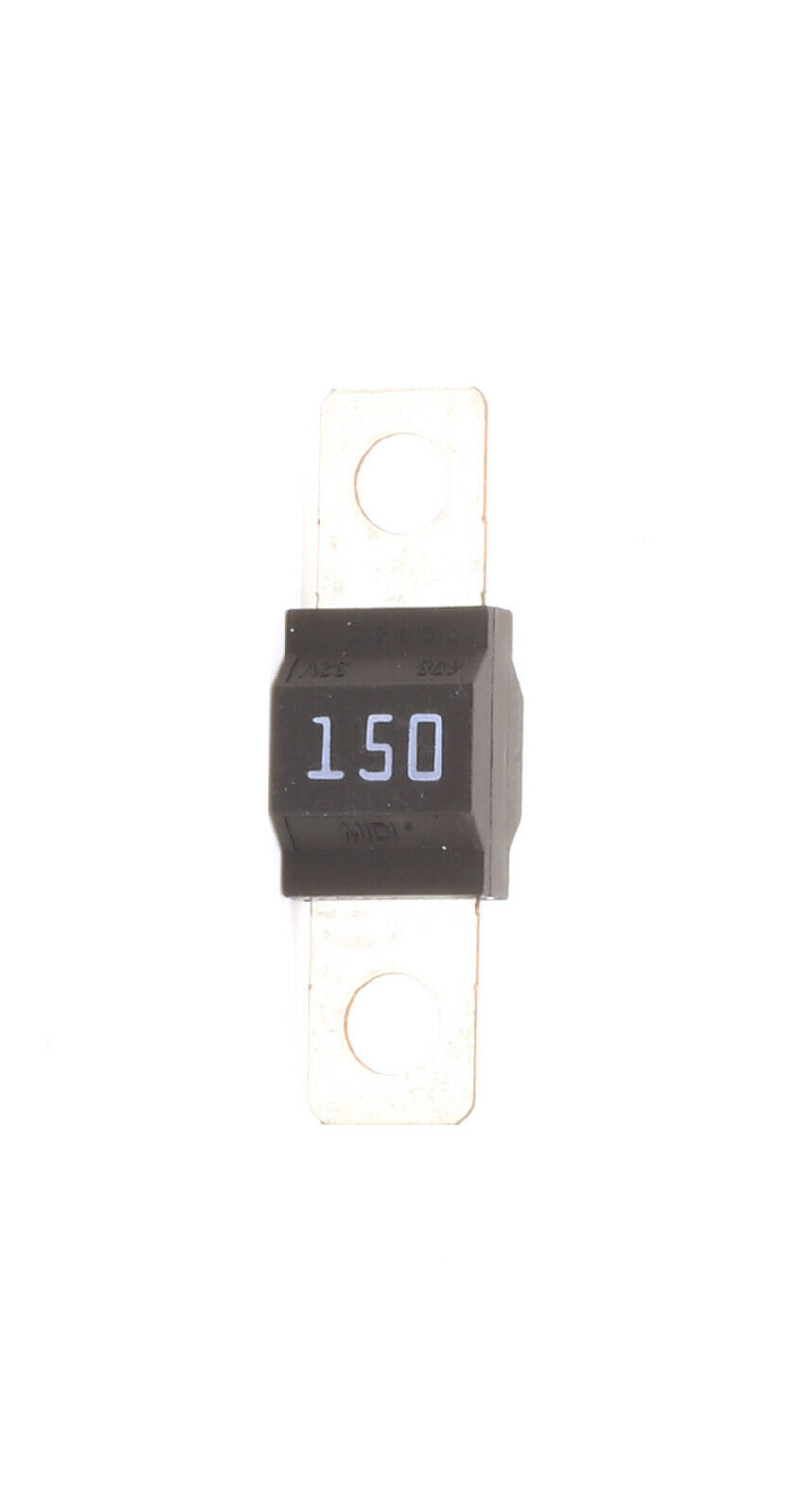

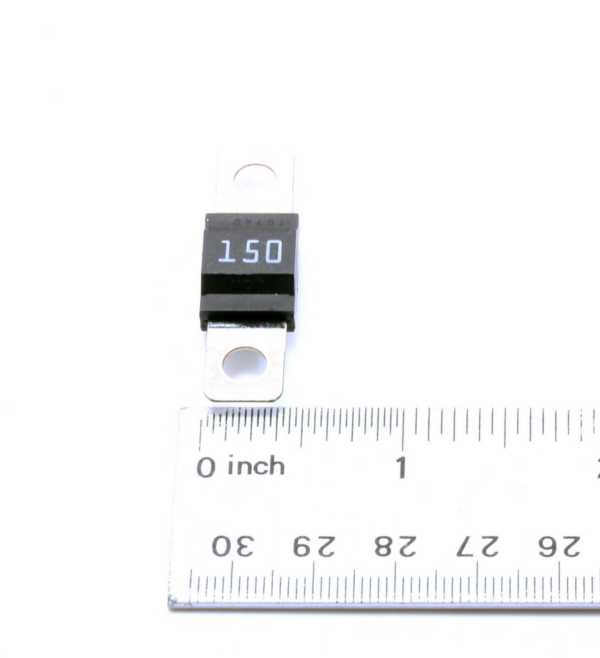

Premium Bolt Down 498 MIDI Fuse 150AMP 32V DC Time Delay Gray

$5.99

Style: Bolt-down Fuse
Current Rating: 150A Gray
Nominal Voltage: 32V
Fuse Type: MIDI / AMI

Handles inrush currents
Color coded for current characteristics
Fuse offers a bolt-on space saving fuse for high current wiring protection and provides time delay characteristics
Use with MIDI fuse holders

Compare
Add to wishlist

Item Information:
Style: Bolt-down Fuse
Current Rating: 150A Gray
Nominal Voltage: 32V
Fuse Type: MIDI / AMI

Handles inrush currents
Color coded for current characteristics
Fuse offers a bolt-on space saving fuse for high current wiring protection and provides time delay characteristics
Use with MIDI fuse holders

Specification:
Current Rating: 150A
Color: Gray
Voltage Rating: 32V DC
Operating Temperature Range: -40C to +125C
Black Housing Material: PA66-GF25 (U.L. 94 Flammability rating – V0)
Terminal: Tin plated Copper
Mounting Torque M5: 4.5 Nm +/- 1Nm
Mounting Torque M6: 6.0 Nm +/- 1Nm
Refers to: ISO 8820-5:2003
Complies with: Standard UL 248-1 as a Special Purpose Fuses in UL file E71611 (40-100A) and Directive 2011/65/EU

Weight 3 oz
AMP

150A
Color

Gray
