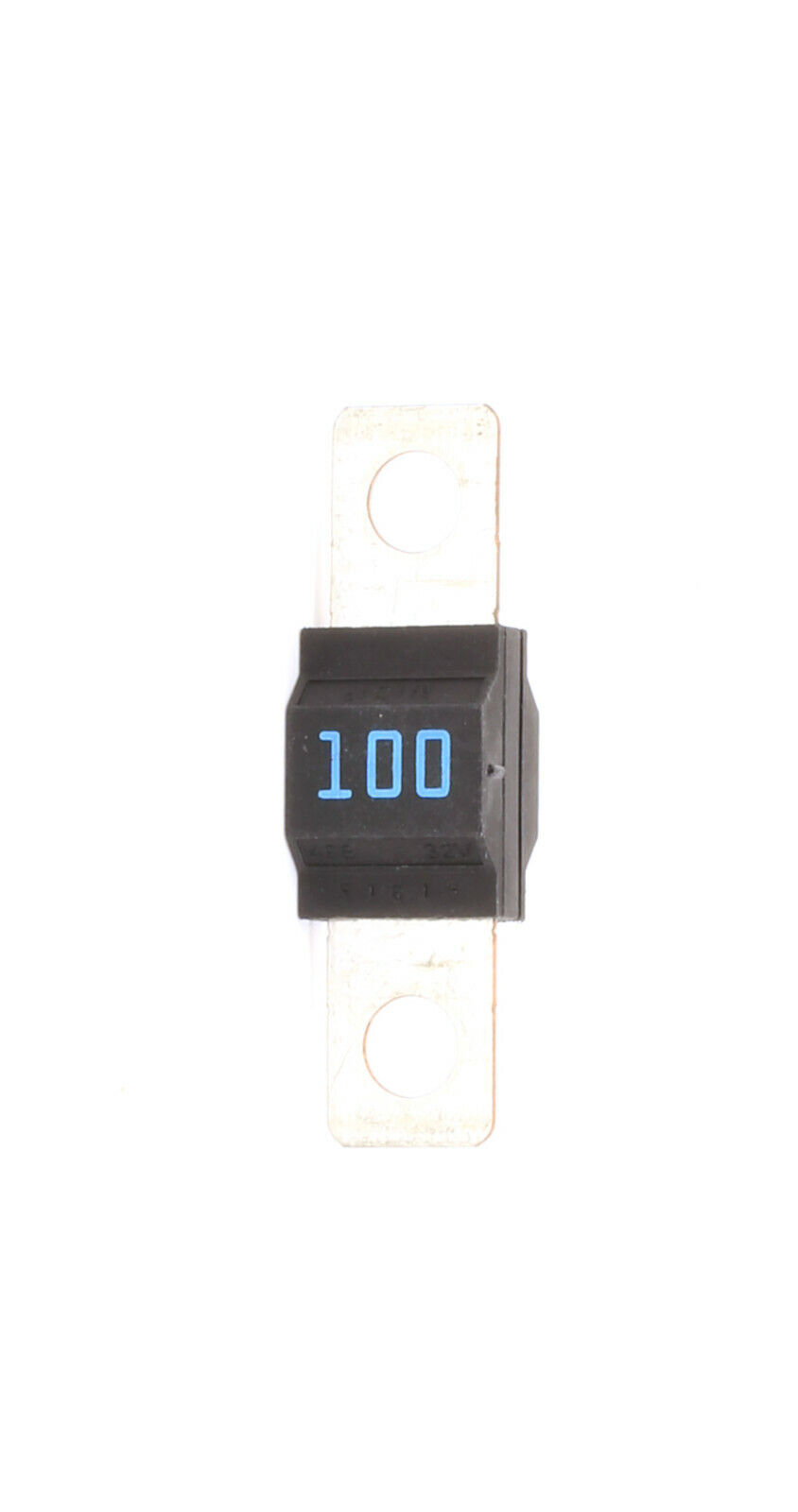

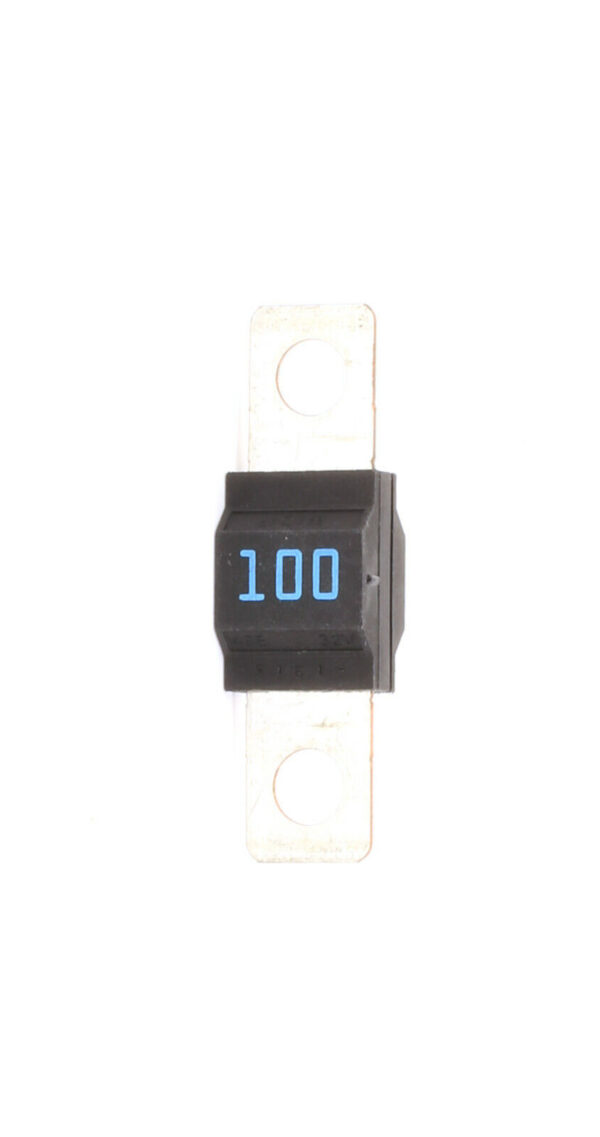

Premium Bolt Down 498 MIDI Fuse 100AMP 32V DC Time Delay Blue
$5.99
Style: Bolt-down Fuse
Current Rating: 100A Blue
Nominal Voltage: 32V
Fuse Type: MIDI / AMI
Handles inrush currents
Color coded for current characteristics
Fuse offers a bolt-on space saving fuse for high current wiring protection and provides time delay characteristics
Use with MIDI fuse holders
Item Information:
Style: Bolt-down Fuse
Current Rating: 100A Blue
Nominal Voltage: 32V
Fuse Type: MIDI / AMI
Handles inrush currents
Color coded for current characteristics
Fuse offers a bolt-on space saving fuse for high current wiring protection and provides time delay characteristics
Use with MIDI fuse holders
Specification:
Current Rating: 100A
Color: Blue
Voltage Rating: 32V DC
Operating Temperature Range: -40C to +125C
Black Housing Material: PA66-GF25 (U.L. 94 Flammability rating – V0)
Terminal: Tin plated Copper
Mounting Torque M5: 4.5 Nm +/- 1Nm
Mounting Torque M6: 6.0 Nm +/- 1Nm
Refers to: ISO 8820-5:2003
Complies with: Standard UL 248-1 as a Special Purpose Fuses in UL file E71611 (40-100A) and Directive 2011/65/EU
| Weight | 3 oz |
|---|---|
| AMP | 100A |
| Color | Blue |
